Name: Urban Areas

Display Field: PlanningAreaName

Type: Feature Layer

Geometry Type: esriGeometryPolygon

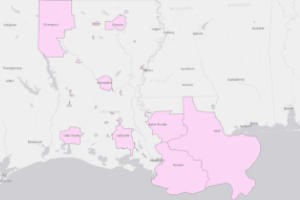

Description: This feature layer contains Federal Highway Administration (FHWA) planning area boundaries for Louisiana, based on the 2020 U.S. Census. The dataset represents Metropolitan Planning Areas (MPA) and urban planning areas used for transportation planning, analysis, and funding purposes. The data is maintained by the FHWA in coordination with state and local transportation agencies and is updated following each decennial census or as planning boundaries change. This dataset is intended for use in transportation planning, regional analysis, policy development, and cartographic applications. Key attributes include the planning area name and associated FHWA identifiers.

Service Item Id: 747a2b61552c4206b6558dc630624a02

Copyright Text: FHWA

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 401488.6261
YMin: 3197075.7424
XMax: 909651.6059999997
YMax: 3653904.5968999993
Spatial Reference: 26915  (26915)  VCSWkid(5703)  LatestVCSWkid(5703)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [238, 209, 252, 255]
Outline:
Style: esriSLSSolid
Color: [110, 110, 110, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• PlanningAreaType ( type: esriFieldTypeString, alias: Planning Area Type, length: 15 )
• PlanningAreaName ( type: esriFieldTypeString, alias: Planning Area Name, length: 30 )
• PlanningAreaFIPS ( type: esriFieldTypeString, alias: Planning Area FIPS, length: 5 )
• ParishNameList ( type: esriFieldTypeString, alias: Parish Name List, length: 300 )
• ParishNumberList ( type: esriFieldTypeString, alias: Parish Number List, length: 50 )
• ParishFIPSList ( type: esriFieldTypeString, alias: Parish FIPS List, length: 65 )
• DOTD_DistrictNameList ( type: esriFieldTypeString, alias: LaDOTD District Name List, length: 40 )
• DOTD_DistrictNumberList ( type: esriFieldTypeString, alias: LaDOTD District Number List, length: 12 )
• AreaSquareMiles ( type: esriFieldTypeDouble, alias: Area (Square Miles - UTM83-15N) )
• AreaAcres ( type: esriFieldTypeDouble, alias: Area (Acres - UTM83-15N) )
• PerimeterMile ( type: esriFieldTypeDouble, alias: Perimeter (Mile - UTM83-15N) )
• created_user ( type: esriFieldTypeString, alias: Record Created By, length: 50 )
• created_date ( type: esriFieldTypeDate, alias: Date Record Created (UTC), length: 8 )
• created_date_UTCOffset ( type: esriFieldTypeString, alias: Date Record Created UTC Offset, length: 6 )
• last_edited_user ( type: esriFieldTypeString, alias: Record Last Updated By, length: 50 )
• last_edited_date ( type: esriFieldTypeDate, alias: Date Record Last Edited (UTC), length: 8 )
• last_edited_date_UTCOffset ( type: esriFieldTypeString, alias: Date Record Last Edited UTC Offset, length: 6 )
• service_last_updated ( type: esriFieldTypeDate, alias: Feature Service Last Updated (UTC), length: 8 )
• service_last_updated_UTCOffset ( type: esriFieldTypeString, alias: Feature Service Last Updated UTC Offset, length: 6 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• DateAdopted ( type: esriFieldTypeString, alias: Date Area Agreed Upon, length: 12 )
• CensusDate ( type: esriFieldTypeString, alias: Date of Census Data, length: 8 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Area (Square Meters - UTM83-15N) )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Perimeter (Meter - UTM83-15N) )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
